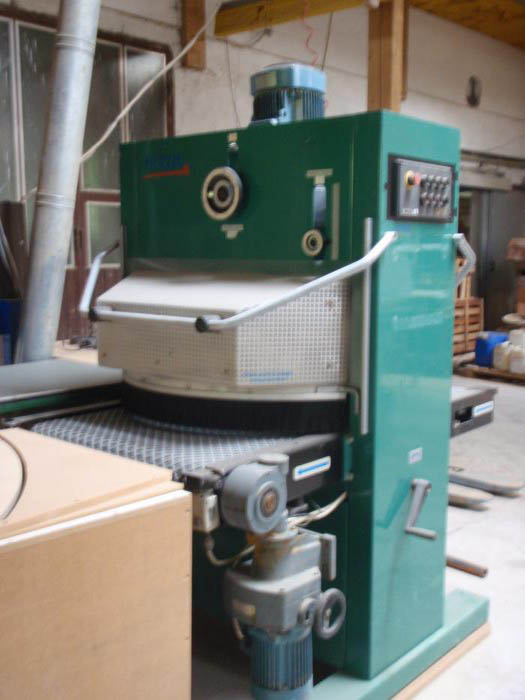

Denibbing Sander ideal before gluing or lacquering.
Compact machine with 800mm (31.5") operation width, optimal for any manufacturer of 3D laminated doors.
Technical Details:
Height: 2210 mm / 87"
Width: 1450 mm / 57"
Total length: 1720 mm / 68"
Operation height: ca. 90 cm / 35"
max. width: 50 - 800 mm / 2" - 31.5"
Feed rate: 2 - 12 m/min / 6.5' - 39' /min
Spindle speed: 300 - 1250 rp
Spindle length: 250 mm / 10"
Number of Spindles: 6
Disks per Spindle: 16
Extraction: Ø 175 mm / min. 2.800 m³/min
Power supply: 3 x 400 V, 50+60 Hz
Main Motor: 4 kW
Motor for rotation: 0,25 kW
Feeding motor: 1,5 kW
Vacuum pump: 11 kW
Weight: ca. 900 kg
Year of Construction: week 43 / 1988
Machine is in very good condition, the vulcanization of the spindle carrier was replaced 2 years ago and the abrasives are like new.
Site: from stock Wang, Austria
Price: € 8.500.- EXW
|
