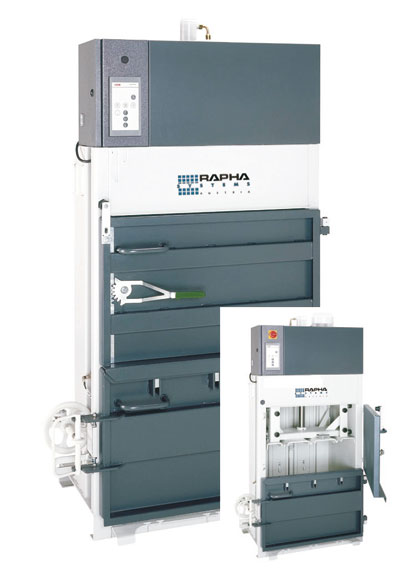

Rest-Foil Baling Press RFP-10S

Foils remainder disposal in the smallest place: High compaction force with a low space requirement.

Applicability:

This baling press is especially recommended for every factory and will be positioned near the membranpress for quick and practical foils remainder disposal.

Advantages:

  • Micro processor control without limit switch. Low maintenance design. Well arranged LCD display.
  • Automatic start when closing the feed flap- rapid compaction cycle,  automatic ram return.
  • Adjustable compaction time: The material can be kept under pressure.
  • Easy tying of the bales and complete bale ejection.
  • Two-phase hydraulic unit of the control block guarantees a rapid compaction cycle.
  • Generous hydraulics: High compaction force with low hydraulic pressure and low drive performance.
  • Alteration Cardboard - foil

Technical Data:

Motor 2 kW
Voltage 400V 50Hz
Compaction force max. 8.5 max. t
Cycle time 29 s
Compaction time 19 s
Opening W x H 68 x 62 cm
Opening height from floor 97 cm
Bale size W x H x D approx. 70 x 49 x 70cm
Bale weight ** 50-80 max. kg
Overall width 100 cm
Overall depth 72 cm
Overall height 192 cm
Overall weight 550 kg
*Depending upon type of material
Technical details and colours are subject to change without prior notice.
